Nash Robot

Introduction :

A surveillance robot that is meant to go around a fixed path and capture images and videos. This videos will be live streamed to the database for the user to view and take corrective actions.

Project brief :

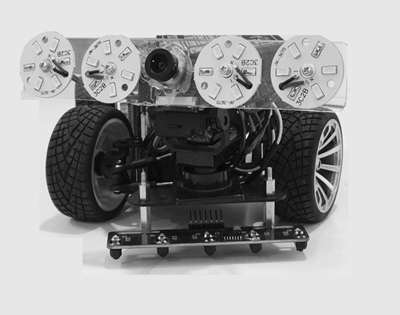

A 4 wheel robot is built to move both in manual mode and also to follow a line under the production line to capture images and videos. This will be updated to the server using a Linux platform SOM. It is used to find the location of the issue and report the same.

Blocks used :

  • 4 wheel robot with obstruction detection
  • Line follower
  • BMS
  • Camera connected to a Linux SOM.

Future Enhancement :

This has multiple use case for future development. We can develop this to a robot moving materials across the production line. This can be used to monitor a community. It can also be developed to identify parts and make an action related to it.



Specification :

  • Communication
  • General
  • Camera
  • Functional Mode
  • Sensors
  • Battery
  • Network connectivity - 2.4 GHz Wi-Fi
  • Connectivity range – 42meters
  • External Storage – USB 2.0 up to 32GB
  • Inbuilt storage – 16GB (2GB reserved for OS)
  • Smartphone compatible – Android 5 and above.



In the box :

  • N-BOT – 1 Piece
  • Power Adaptor (8.4, 3A) – 1 Piece
  • SD Card (16GB) – 1 Piece
  • Instruction Manual – 1 Piece
  • Warranty Card- 1 Piece

Name Suggestions :

  • iDo-bot ( it does what we say)
  • N-BOT (nash bot)
  • eoBOT (one eyed (camera) bot.)
  • Inspector (it does inspection in the factory)
  • Toady (a person who behaves obsequiously to someone important.)
  • Unicam BOT ( one camera bot)
